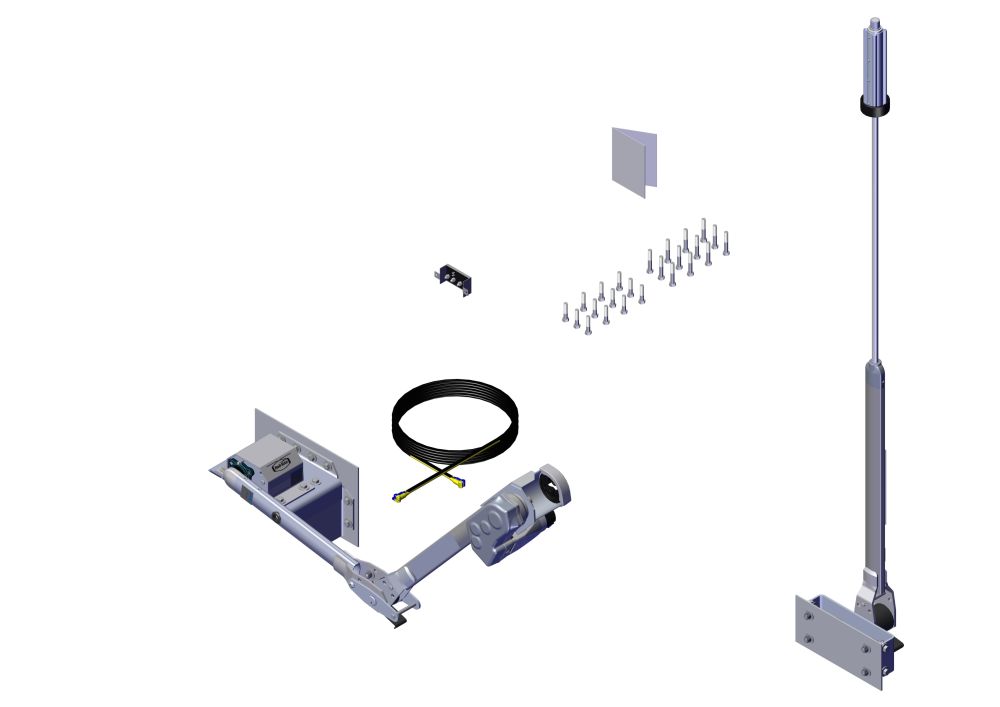

Power Kit, Pass. Stowing Top Mount with Long Upper, Rear Flex Arm Return - (Chip Config)

Name: Power Kit, Pass. Stowing Top Mount with Long Upper, Rear Flex Arm Return - (Chip Config)
Brand: Roll Rite
SKU: 37112
Availability: InStock

Be the first to review this product

Power Kit. Pass. Stowing Top Mount with Long Upper. Rear Flex Arm Return - (Chip Config)

Find a Dealer

SKU

37112

Order Parts

Controls:

Parts List

10200 TarpStretcher Motor 12V, 5 Year Warranty :S/N:
103810 Pivot. Assembled Front Arm for Transfer Trailer Power Kit Passenger Stowing
103813 Bracket, AL Plate for Top Mount Pivot Box Mount
104278 Bracket, Alum Pivot Mounting Extension Plate
18296 Bolt. 1/2" x 1 1/2" Hex Head Bolt
18306 Bolt. 1/2" -13x3 Zinc Hex Head G5
18412 Washer. 1/2" Flat Zinc
18631 Nut. 1/2" Nylock Nut
18739 Bolt. 1/2" x 2 1/4" Hex Head Bolt
46470 Pivot Assembly, 6 Spring Top Mount Pvt w/out Tube - Drivers Side
46506 Pivot Assembly, Multi-Flex Rear Arm for Pass Stowing System w/3" Axle
47200 Bracket, AL for Mounting Top Mnt Pivot to Vertical Surface
47277 Bracket, Inner Mounting Bracket for Multiflex
47278 Bracket, Outer Mounting Bracket for Multiflex
103815 Bracket, AL Plate for Multi-Flex Mount
104148 Smart Breaker & enclosure with 10698 relay and 8ga terminals
103890 Instructions. Chip-Transfer Trailer Multi Flex Instuctions STS

Details

Power Kit, Pass. Stowing Top Mount with Long Upper, Rear Flex Arm Return - (Chip Config)
