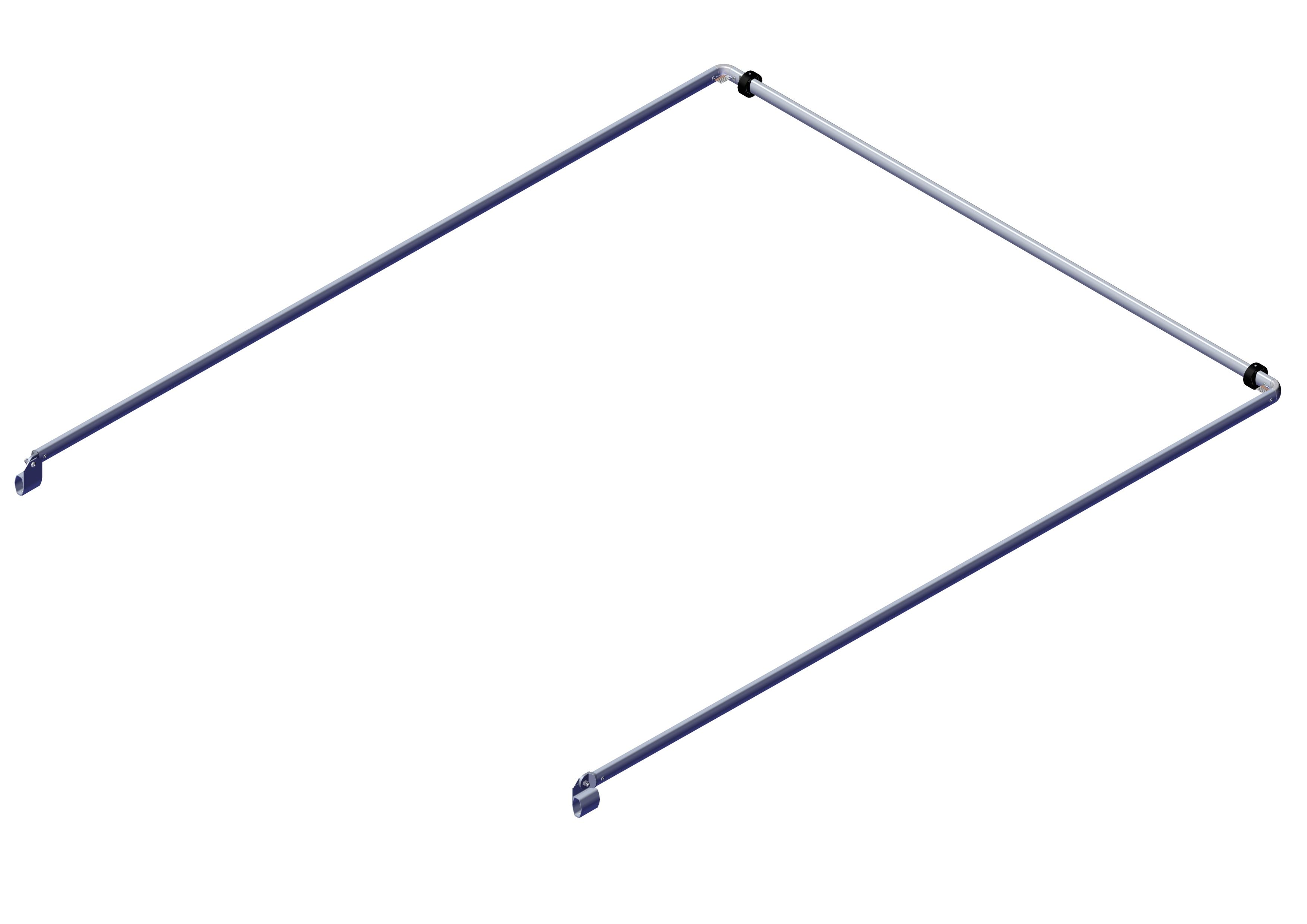

Bow Set, Long & Wide Tension Bow 103 1/2" Top Tube w/ 130" Long Side Arms
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 3 | 76830 | Bracket. AL Tension Bow Mount Bracket w/ hardware | 2 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 103533 | Tether. Cable with Install Label for 90 degree corner | 1 |
| 2 | 18719 | Nut. 1/4-20 Cap Conn Nut Clear Zinc - Post bolt for 90 degree corners | 2 |
| 3 | 18718 | Bolt. 1/4-20 x 1 3/16 Bolt Clear Zinc - Post bolt for 90 degree corners | 2 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 18295 | Bolt. 1/2" x 1 1/2" Button Head Bolt | 1 |
| 2 | 18131 | Bolt. 1/2" x .620 x .650 steel spacer (to replace Ribbed Neck Carriage) with 18295 | 1 |
| 3 | 18631 | Nut. 1/2" Nylock Nut | 1 |
| 4 | 18293 | Screw. 1/2" x 3/8" Set Screw | 2 |
