Bill of Materials List

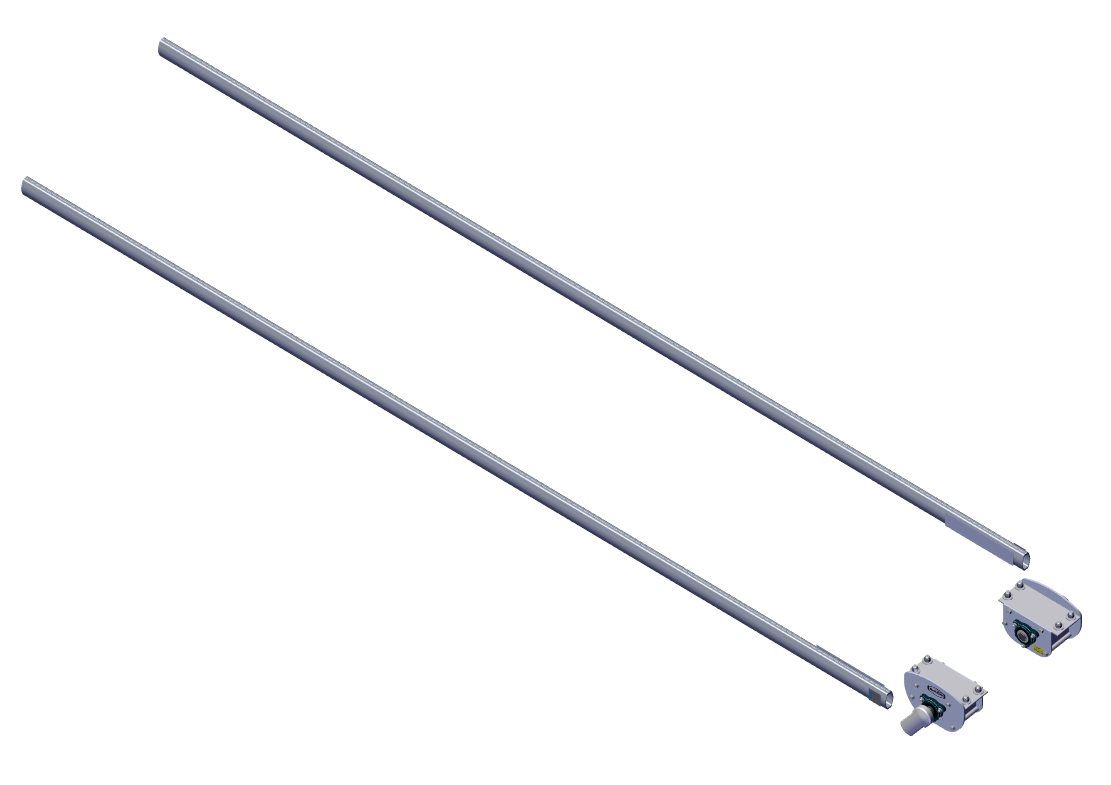

Pivot Set, 6 Spring Under Body w/ 96" Pivot Tubes

main product image

Product #: 46583

Bill of Materials List

46583

Bom IdPart #DescriptionQty
1 103295 Pivot. UB Assembly 6 Spr Driver 1
2 103296 Pivot. UB Assembly 6 Spr Passenger 1
3 46250 Pivot Tube. AL 5UB/SR spring tube only w/set screws (96") 2
Bill of Materials List

103296

Bom IdPart #DescriptionQty
1 46370 Pivot Pin. for 5 & 6-Spring Roller Bearing - Passenger 1
2 47800 Bearing. Carrier Underbody Flanged 2
3 18120 Bolt. 3/8" x 1-1/2" Thread Cutting Screw Hex Washer Hd 8
4 102349 Plate. Al Front for Ext Bolt Flange Mount UB Box 1
5 47230 Spring. Spiral Torsion Spring 1 1/4" 6
6 102509 Bracket. Ext Body with holes for 6 Spr UB Box 1
7 102259 Plate. Al Back for Ext Bolt Flange Mount UB Box 1
Bill of Materials List

103295

Bom IdPart #DescriptionQty
1 46360 Pivot Pin. for 5 & 6 Spring Roller Bearing - Drivers Side 1
2 47800 Bearing. Carrier Underbody Flanged 2
3 18120 Bolt. 3/8" x 1-1/2" Thread Cutting Screw Hex Washer Hd 8
4 102349 Plate. Al Front for Ext Bolt Flange Mount UB Box 1
5 47230 Spring. Spiral Torsion Spring 1 1/4" 6
6 102509 Bracket. Ext Body with holes for 6 Spr UB Box 1
7 102259 Plate. Al Back for Ext Bolt Flange Mount UB Box 1
Bill of Materials List

47800

Bom IdPart #DescriptionQty
1 18628 Nut. Nylock nut 3/8" Jamb Nut 2
2 18242 Bolt. 3/8"-16 x 1 1/8" Button Head 2
