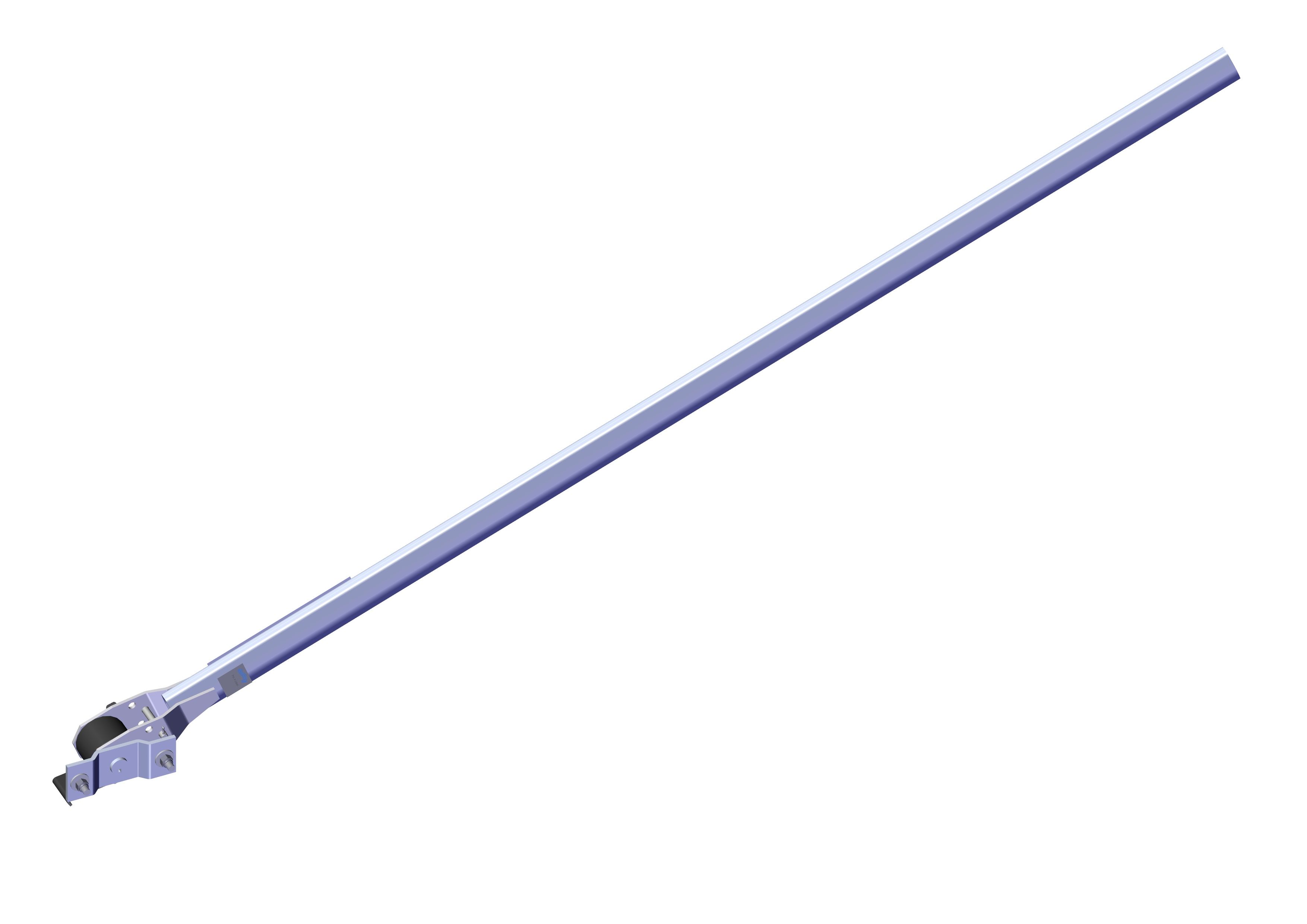

Pivot, Pass-4 Spring Torsion AL
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 46140 | Pivot Tube. 84" AL 4 Spring Arm Only | 1 |
| 2 | 47230 | Spring. Spiral Torsion Spring 1 1/4" | 4 |
| 3 | 45340 | Pivot Pin. 4-Spring with 47000 snap ring | 1 |
| 4 | 18296 | Bolt. 1/2" x 1 1/2" Hex Head Bolt | 2 |
| 5 | 18412 | Washer. 1/2" Flat Zinc | 2 |
| 6 | 18631 | Nut. 1/2" Nylock Nut | 2 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 47040 | Bushing. 1 1/4 Poly T- Bushing for Pivot Pin | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 47040 | Bushing. 1 1/4 Poly T- Bushing for Pivot Pin | 2 |
| 2 | 18520 | Pin. 1/2" x 3-1/2" Clevis | 1 |
| 3 | 18293 | Screw. 1/2" x 3/8" Set Screw | 2 |
