Bill of Materials List

Rite-Lock Power Arm Kit, Pass Stowing w/Two Top Mount Pivots for Bottom Dump - S/N:TS

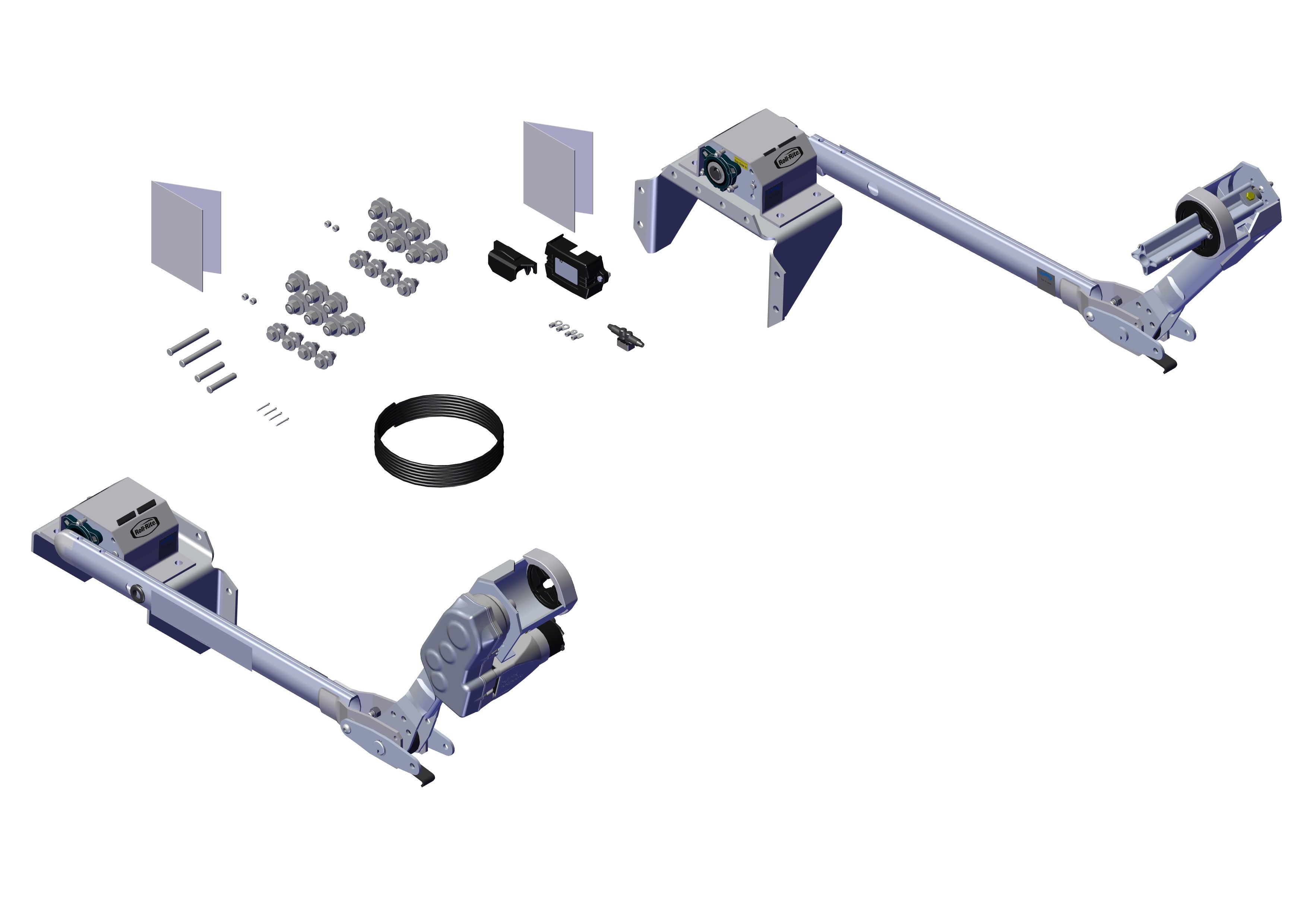

main product image

Product #: 37120

Bill of Materials List

37120

Bom IdPart #DescriptionQty
1 101637 Pivot Assembly Front arm for 37100. 37120 & 37105 1
2 10200 TarpStretcher Motor 12V. 5 Year Warranty :S/N: 1
3 47200 Bracket. AL for Mounting Top Mnt Pivot to Vertical Surface 2
4 46470 Pivot Assembly. 6 Spring Top Mount Pvt w/out Tube - Drivers Side 1
5 11411 Wire. 16/3-Conductor - 15ft 1
6 101640 Electric Kit. Gen1+ Solid State Motor Control 12V SWD6 with Rocker Switch 1
7 46500 Pivot. Assembly 5 Spring Top Mount Pivot w/out Tube - Passenger Side 1
8 36970 Axle Splice. Side-to-Side w 1" Shaft Adapter 1
9 31050 Bearing. 3/4" Flanged Axle Bearing with bolts 1
10 101641 Pivot Assembled Rear Arm For 37120 1
Bill of Materials List

46500

Bom IdPart #DescriptionQty
1 46370 Pivot Pin. for 5 & 6-Spring Roller Bearing - Passenger 1
2 18540 Pin. 1/2" x 5-1/4" Clevis 1
3 47800 Bearing. Carrier Underbody Flanged 2
4 47230 Spring. Spiral Torsion Spring 1 1/4" 5
5 46400 Bracket. for 6-Spring Top Mount Pivots-each 1
Bill of Materials List

101640

Bom IdPart #DescriptionQty
1 105446 Relay Kit. Gen1+ SS Motor Control 12V SWD6 1
Bill of Materials List

46470

Bom IdPart #DescriptionQty
1 46360 Pivot Pin. for 5 & 6 Spring Roller Bearing - Drivers Side 1
2 47800 Bearing. Carrier Underbody Flanged 2
3 18540 Pin. 1/2" x 5-1/4" Clevis 1
4 47230 Spring. Spiral Torsion Spring 1 1/4" 6
5 18631 Nut. 1/2" Nylock Nut 4
6 18412 Washer. 1/2" Flat Zinc 4
7 18296 Bolt. 1/2" x 1 1/2" Hex Head Bolt 4
Bill of Materials List

101637

Bom IdPart #DescriptionQty
1 46890 Pivot Tube. UP w/Side Pl&Spl Brckt for S/S Knpvt frt 1
2 18510 Pin. 1/2" x 2-3/4" Clevis 1
3 47230 Spring. Spiral Torsion Spring 1 1/4" 2
4 18560 Pin. 1/2 x 4 1/8 Special Clevis 1
5 18295 Bolt. 1/2" x 1 1/2" Button Head Bolt 2
6 18412 Washer. 1/2" Flat Zinc 2
7 18631 Nut. 1/2" Nylock Nut 2
8 46980 Pivot Tube. Base w/side plates and set screws SS (31") 1
9 47960 Bracket. 3 Sp Knuckle pin w/ stop plate for SS pvt. mtr end 1
10 37590 Bushing. Axle Stabilizer for 3694 Conversion Adapt - STS 1
11 37570 Bushing. Axle Stabilizer for Standard Axle 1
Bill of Materials List

101641

Bom IdPart #DescriptionQty
1 37570 Bushing. Axle Stabilizer for Standard Axle 1
2 46890 Pivot Tube. UP w/Side Pl&Spl Brckt for S/S Knpvt frt 1
3 18510 Pin. 1/2" x 2-3/4" Clevis 1
4 47230 Spring. Spiral Torsion Spring 1 1/4" 1
5 47960 Bracket. 3 Sp Knuckle pin w/ stop plate for SS pvt. mtr end 1
7 46980 Pivot Tube. Base w/side plates and set screws SS (31") 1
Bill of Materials List

47800

Bom IdPart #DescriptionQty
1 18628 Nut. Nylock nut 3/8" Jamb Nut 2
2 18242 Bolt. 3/8"-16 x 1 1/8" Button Head 2
Bill of Materials List

105446

Bom IdPart #DescriptionQty
1 101259 Breaker. 50 Amp Manual Reset Circuit Breaker for Rite Touch 1
2 105568 Instructions. Switch Wiring 1
Bill of Materials List

46890

Bom IdPart #DescriptionQty
1 47040 Bushing. 1 1/4 Poly T- Bushing for Pivot Pin 2
Bill of Materials List

46980

Bom IdPart #DescriptionQty
